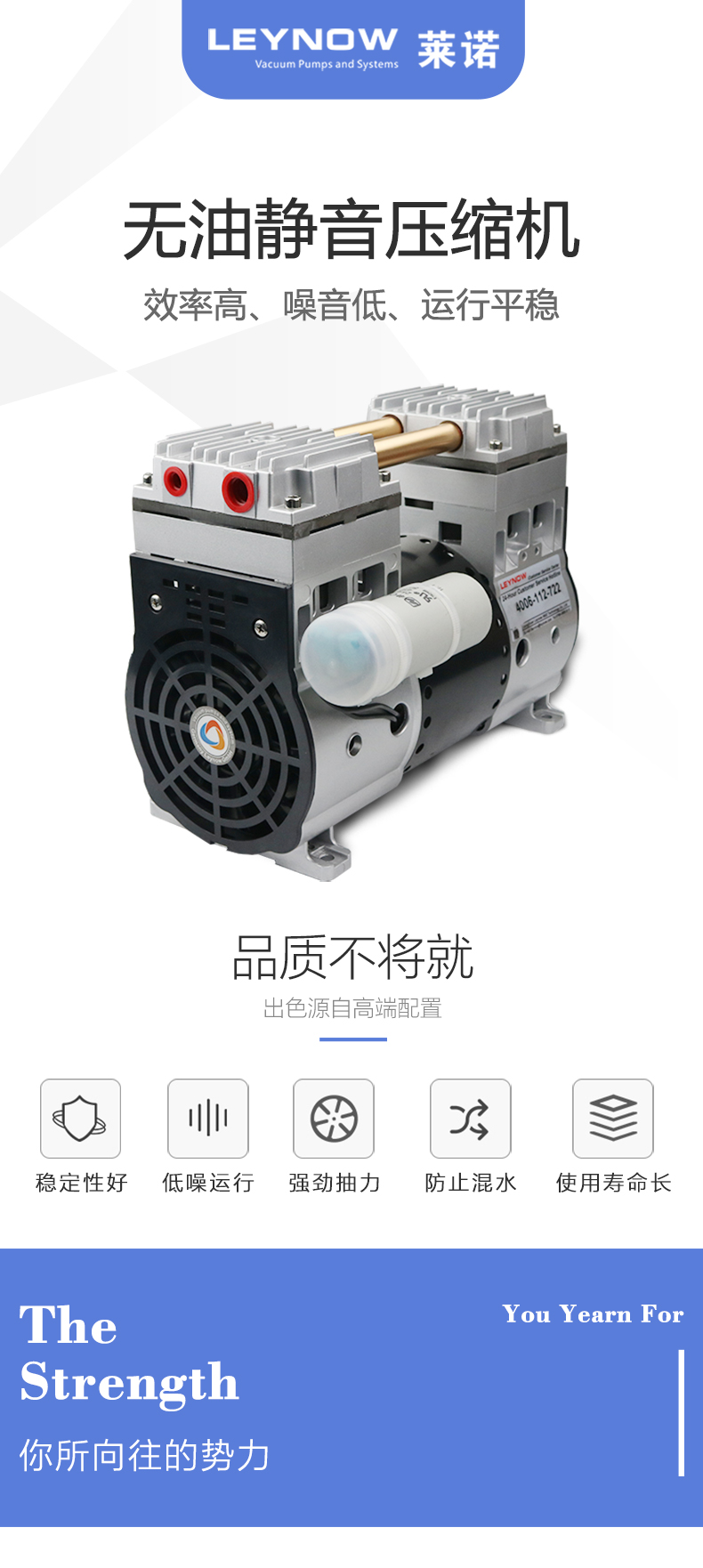

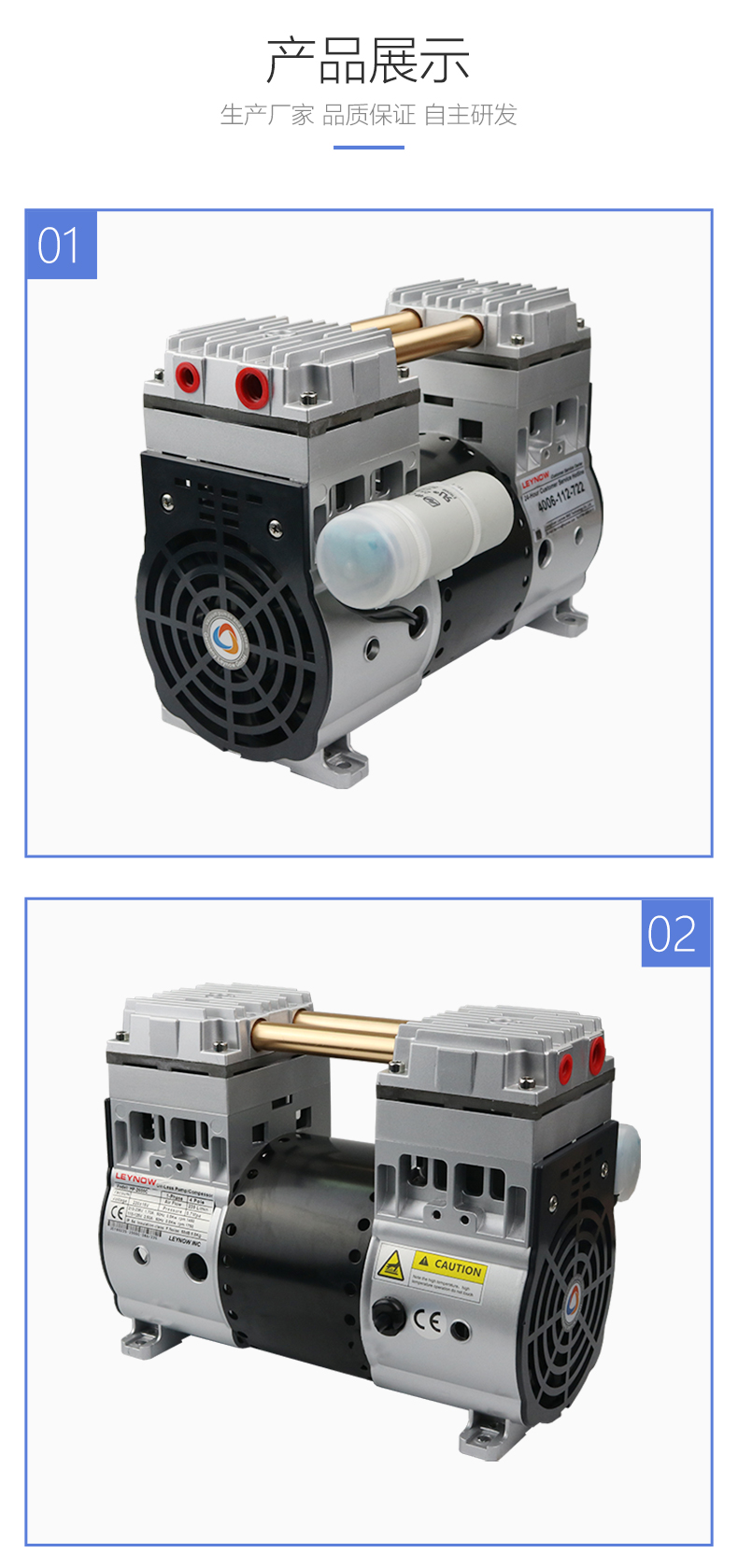

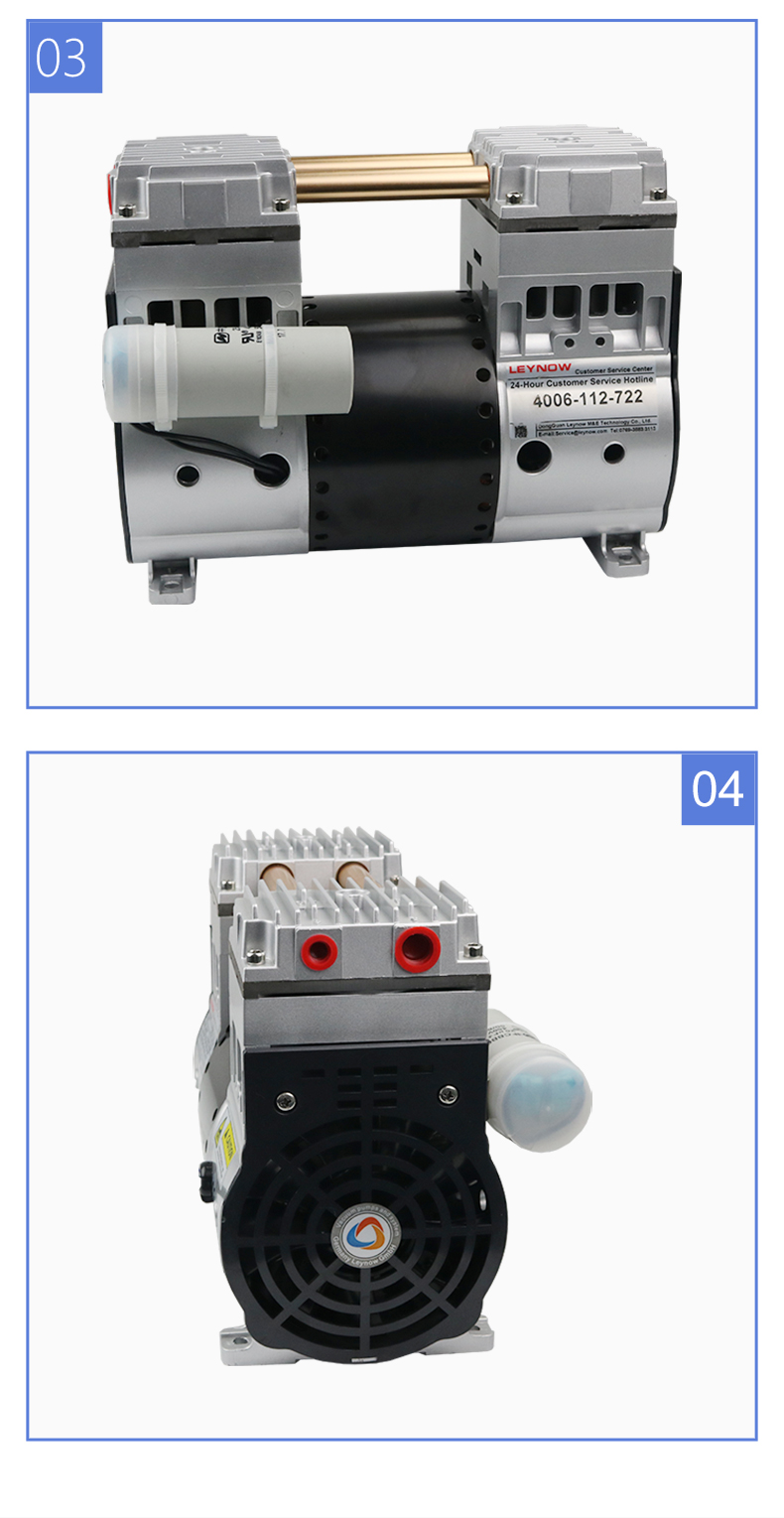

LP-2000C Oil-free air compressor

  • Motor power:0.9 Kw
  • Rated voltage:110V/220-240V
  • Rated flow:13.2 m3/h
  • Rated current:4.0 A
  • Maximum blowing force:8000 mBar
  • Noise level:60 dB(A)
  • Product weight:10.0 Kg
  • Industry application:
    Vacuum packaging

Product Description:Ultra-low vacuum, ultra-low silent, lightweight, beautiful appearance, simple structure, easy maintenance, completely oil-free and easier to maintain.

Welcome to call us for consultation:4006 112 722

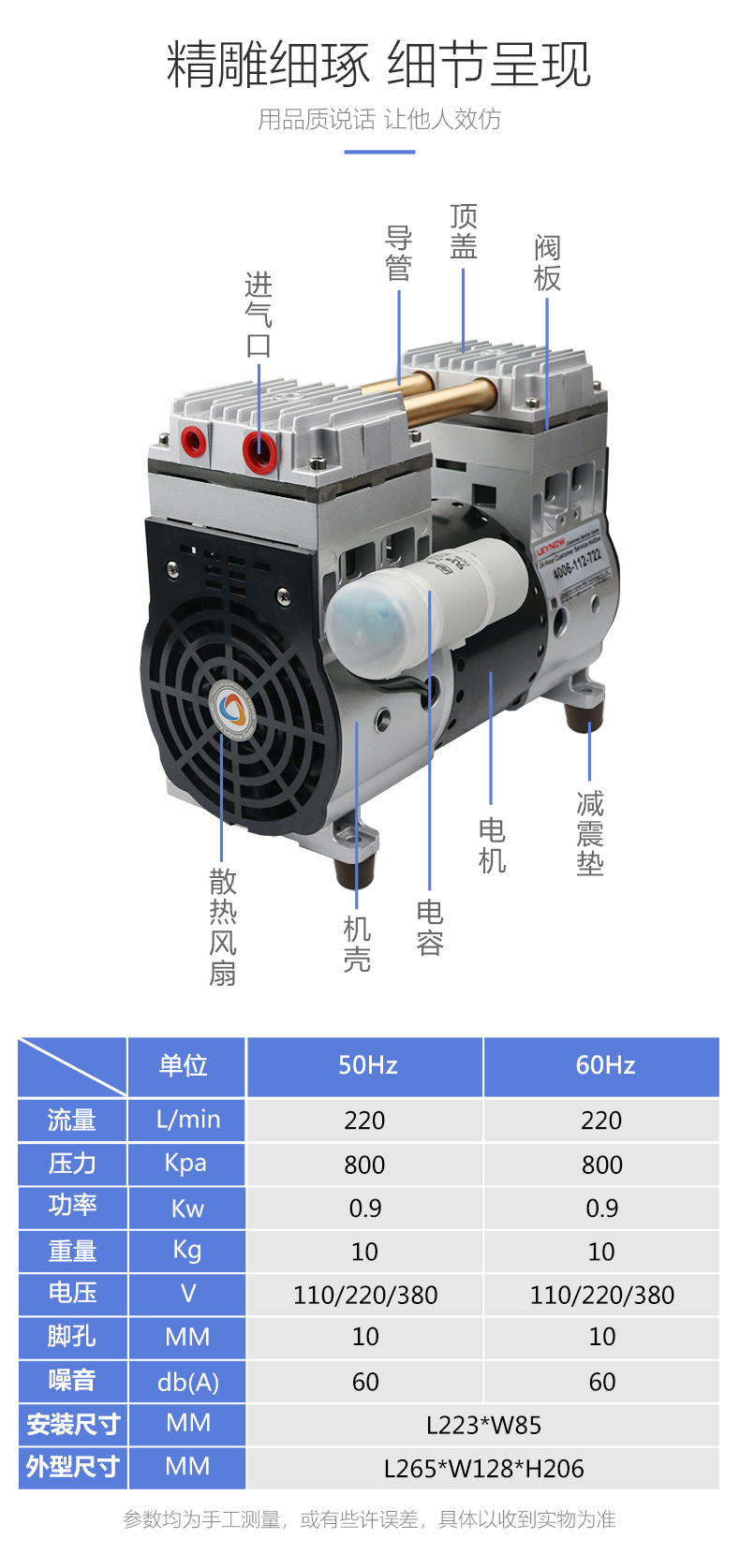

ProjectStandard
Rated voltage/frequency V/Hz220V/50Hz/25uF (can be made as required)
Input power W≤900W 4.0A
Maximum air flow m³/h≤13.2m³/h(220L/min)
Rated working pressure KPa200 KPa(2 kgf/cm2)
Maximum working pressure KPa800 KPa(8 kgf/cm2)
Noise dB(A)≤ 60 dB(A)
Amplitude(mm)
Operating ambient temperature ℃5-40 ℃
Insulation levelB
Cold state insulation resistance(normal)MΩ≥100MΩ
Withstand voltage strength1500V/50Hz 1min No breakdown
Thermal protector℃Automatic reset 130±5℃
Weight10.0Kg
Installation dimensionsL223*W85mm(Installation foot holes¢6mm)
Overall dimensionsL265*W125*H206mm
restart pressure0KPa
Intake and exhaust nozzle outer diameter3/8-19PT (intake) 1/4-19PT (exhaust) pipe thread
