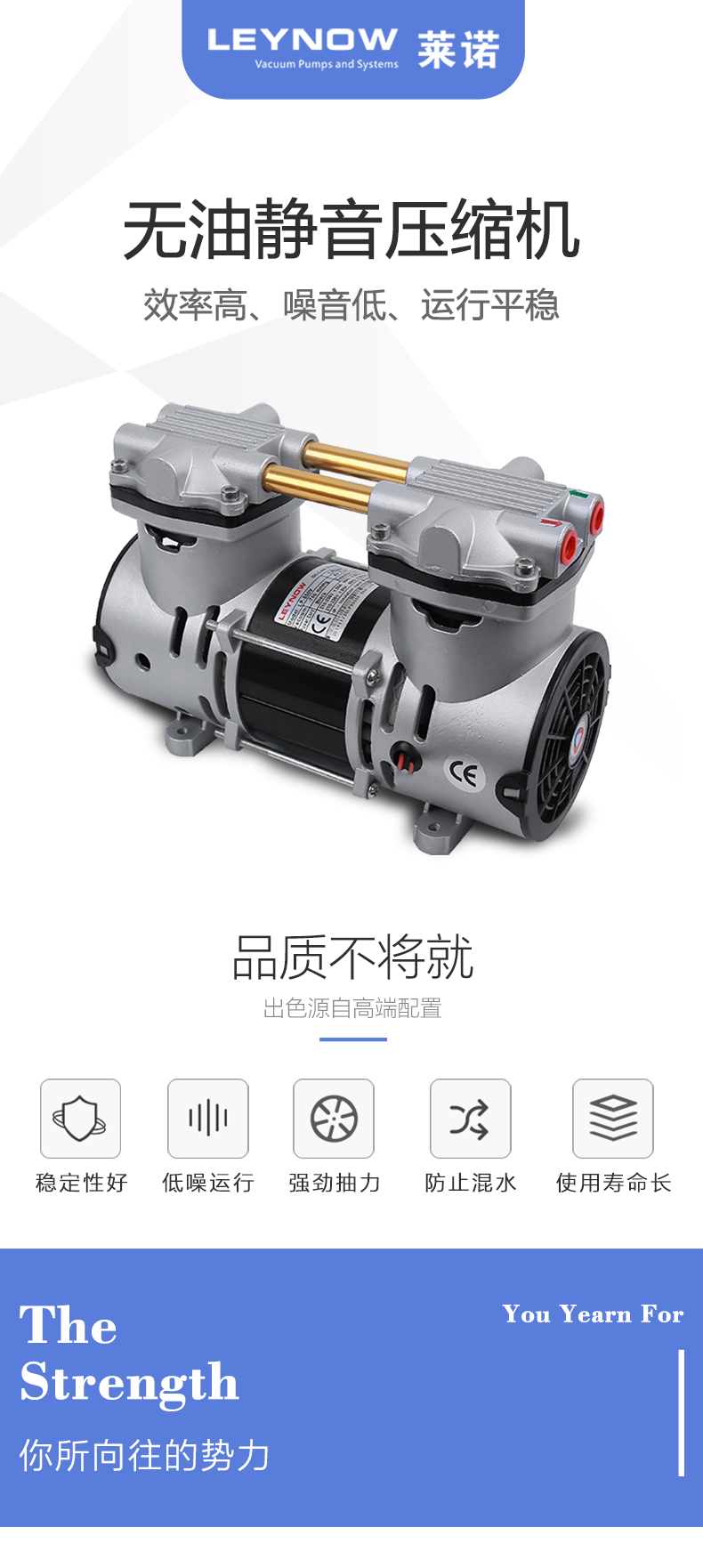

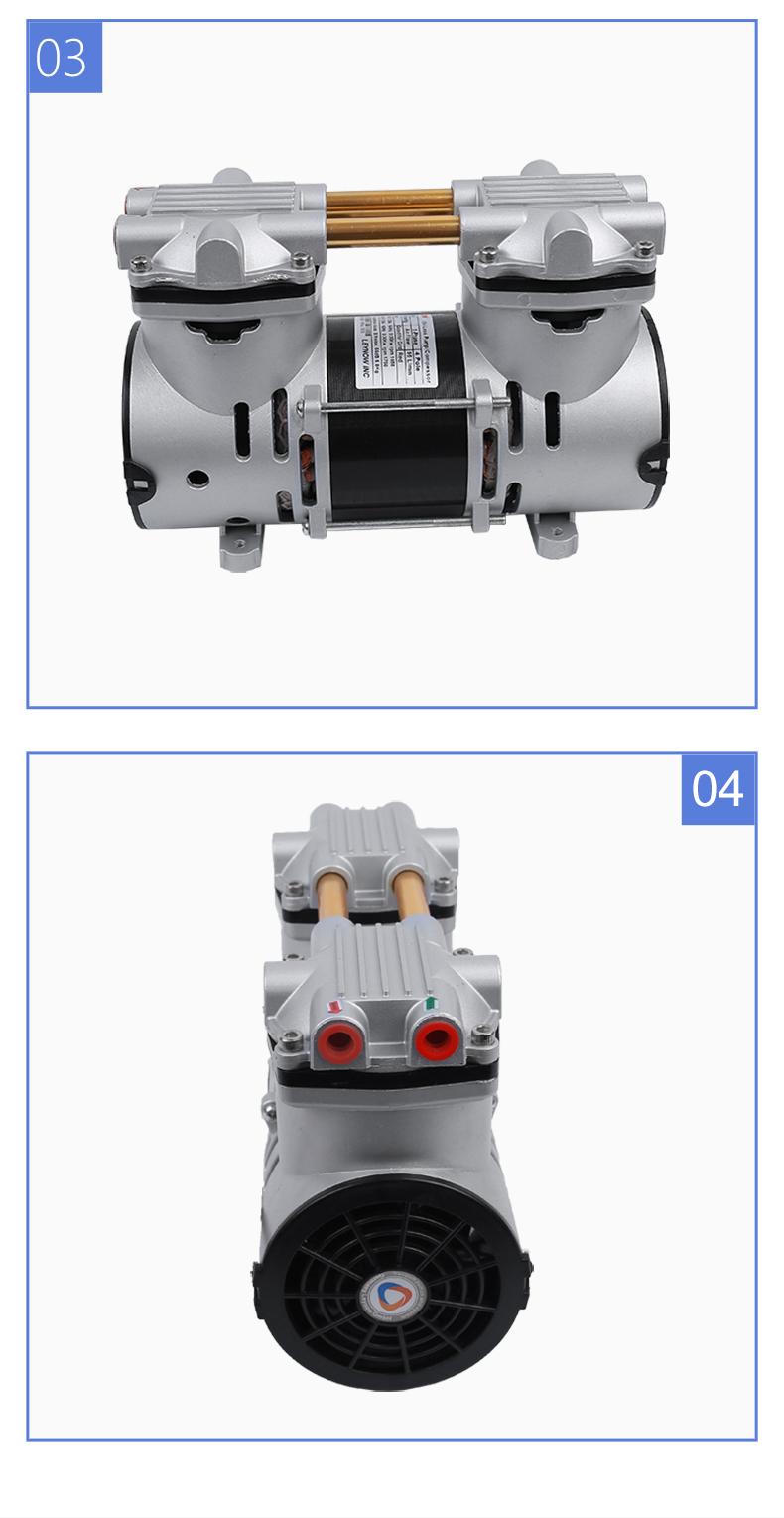

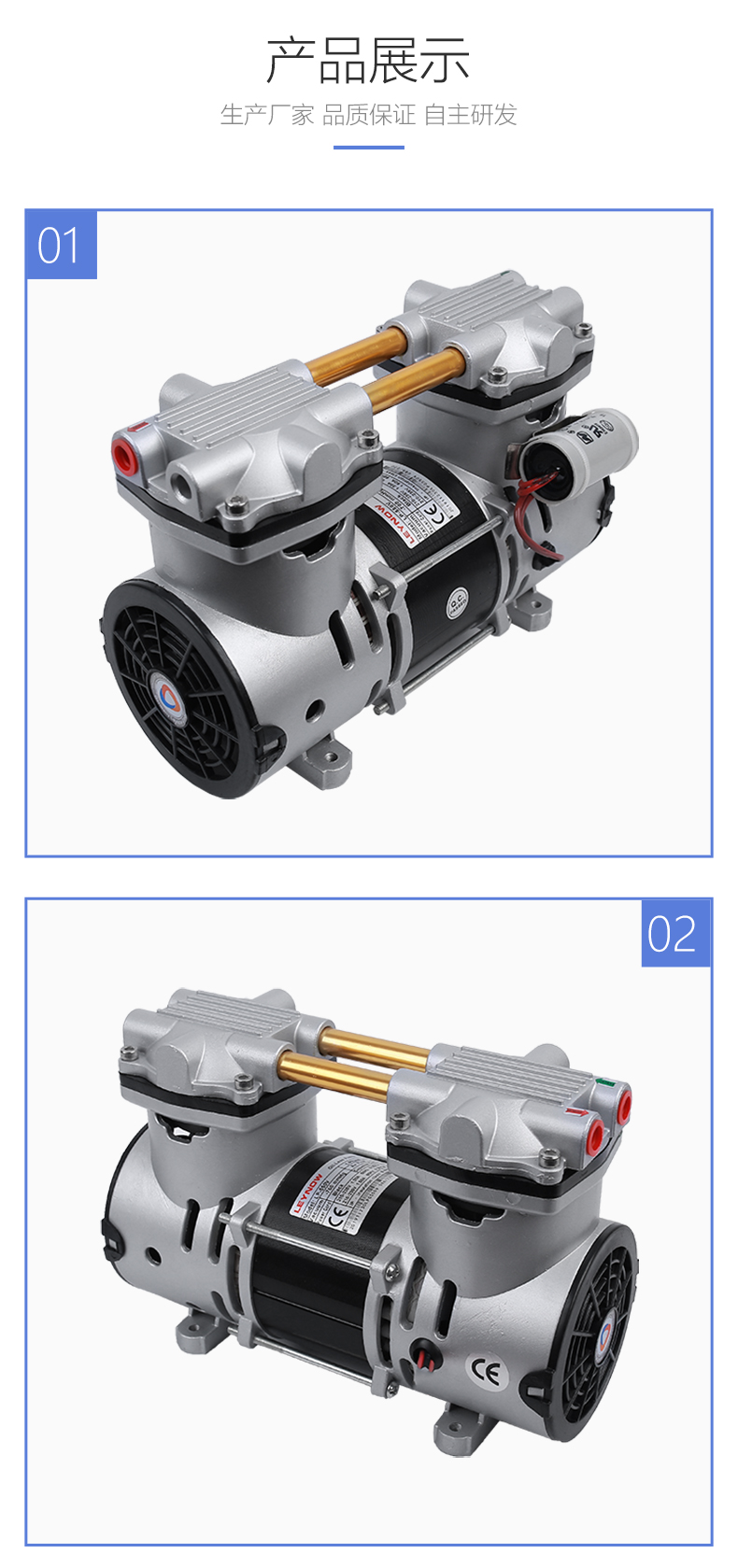

LP-0550C Oil-free air compressor

  • Motor power：0.32 Kw
  • Rated voltage：110V/220-240V
  • Rated flow：6.0 m3/h
  • Rated current：2.5/1.5A
  • Maximum blowing force：4000 mBar
  • Noise level：56 dB(A)
  • Product weight：6.0 Kg
Online Consultation Wangwang Customer Service

Product Description：Ultra-low vacuum, ultra-low silent, lightweight, beautiful appearance, simple structure, easy maintenance, completely oil-free and easier to maintain.

Welcome to call us for consultation：4006 112 722

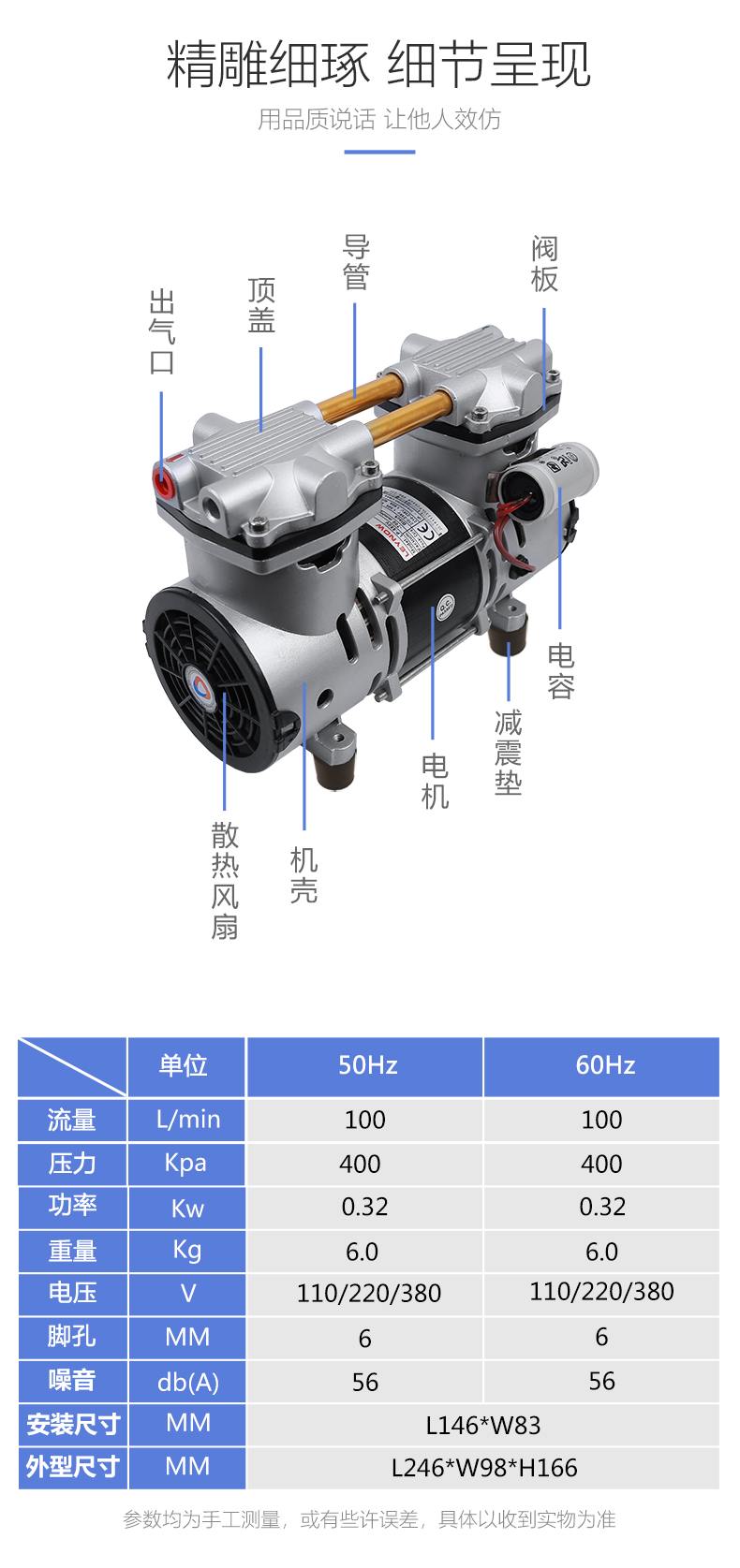

ProjectStandard
Rated voltage/frequency V/Hz220V/50Hz/8uF (can be made as required)
Input power W≤320W 1.5A
Maximum air flow m³/h≤6.0m³/h(100L/min)
Rated working pressure KPa207 KPa(2.07 kgf/cm2)
Maximum working pressure KPa400KPa(4 kgf)
Noise dB(A)≤ 56 dB(A)
Amplitude(mm)
Operating ambient temperature ℃5-40 ℃
Insulation levelB
Cold state insulation resistance(normal)MΩ≥100MΩ
Withstand voltage strength1500V/50Hz 1min No breakdown
Thermal protector℃Automatic reset 130±5℃
Weight6.0Kg
Installation dimensionsL146*W83mm(Installation foot holes￠5mm)
Overall dimensionsL246*W98*H166mm
restart pressure0KPa
Intake and exhaust nozzle outer diameterG1/4
