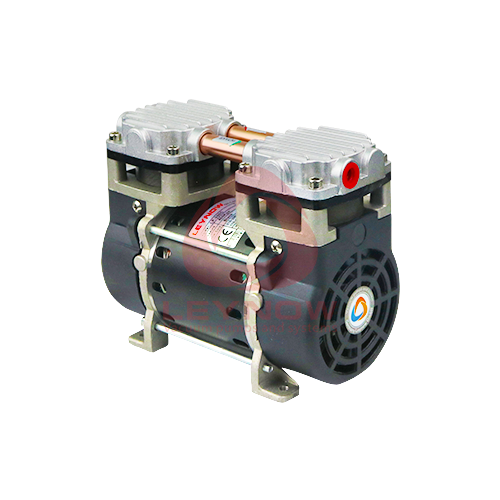

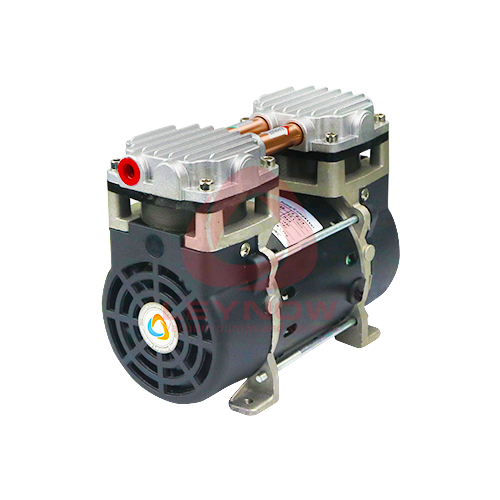

HP-0300C DC12V DC compressor

  • Motor power：0.2 Kw
  • Rated voltage：12V/24V
  • Rated flow：3.0 m3/h
  • Rated current：7.0 A
  • Maximum blowing force：2000 mBar
  • Noise level：50 dB(A)
  • Product weight：3.5 Kg
  • Industry application：
    Vacuum packaging
Online Consultation Wangwang Customer Service

Product Description：Ultra-low vacuum, ultra-low silent, lightweight, beautiful appearance, simple structure, easy maintenance, completely oil-free and easier to maintain.

Welcome to call us for consultation：4006 112 722
ProjectStandard
Rated voltage/frequency VDC 12V/24V (can be made as required)
Input power W≤200W 0.7A
Maximum air flow m³/h≤3.0m³/h(50L/min)
Rated working pressure KPa150 KPa(1.5 kgf)
Maximum working pressure KPa200 KPa(2 kgf)
Noise dB(A)≤ 50 dB(A)
Amplitude(mm)
Operating ambient temperature ℃5-40 ℃
Insulation levelB
Cold state insulation resistance(normal)MΩ≥100MΩ
Withstand voltage strength1500V/50Hz 1min No breakdown
Thermal protector℃Automatic reset 130±5℃
Weight3.5Kg
Installation dimensionsL116*W108mm(Installation foot holes￠5mm)
Overall dimensionsL170*W124*H134mm
restart pressure0KPa
Intake and exhaust nozzle outer diameter￠5 mm
