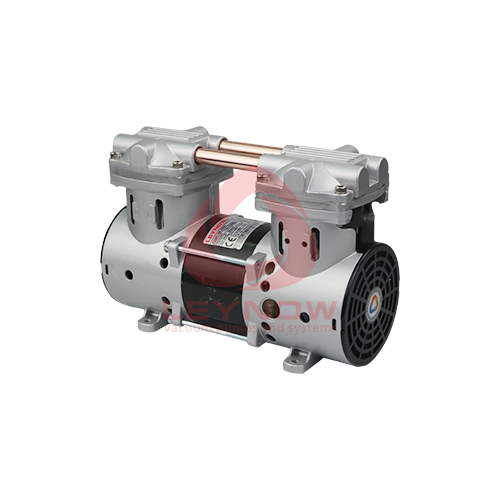

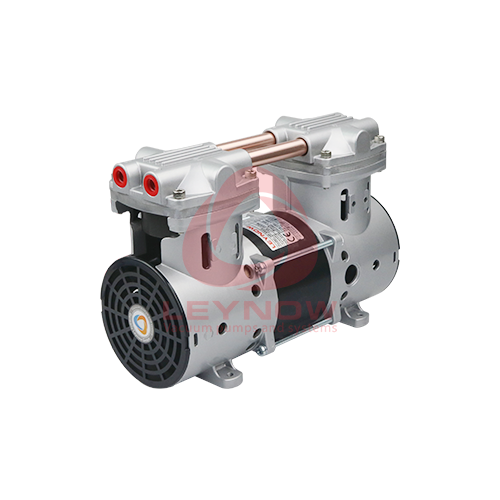

HP-0550V DC24V DC Vacuum Pump

Motor power：0.32 Kw
Ultimate vacuum：920 mBar
Rated voltage：12V/24V
Rated flow：6.0 m3/h
Rated current：24/12 A
Noise level：56 dB(A)
Product weight：6.0 Kg

Industry application：
Vacuum packaging

Online Consultation Wangwang Customer Service

Product Description：Ultra-low vacuum, ultra-low silent, lightweight, beautiful appearance, simple structure, easy maintenance, completely oil-free and easier to maintain.

Welcome to call us for consultation：4006 112 722

Product Parameters
Product Curve
Installation Dimensions
Function and Advantages

Project	Standard
Rated voltage/frequency V/DC	12V/24(Can be made upon request)
Input power W	≤320W 12A
Maximum air flow m3/h	≤6.0m³/h(100L/min)
Minimum vacuum degree (negative pressure)KPa	-92KPa(-700mmHg)
Noise dB(A)	≤ 56 dB(A)
Amplitude (mm)
Use ambient temperature ℃	5-40 ℃
Insulation level	B
Cold insulation resistance (normal) MΩ	≥100MΩ
Withstand voltage strength	1500V/50Hz 1min No breakdown
Thermal protector ℃	Automatic reset 130±5℃
Weight	6.0Kg
Installation dimensions	L147*W83mm(Installation foot holes ￠5mm)
Overall dimensions	L237W97H162mm
restart pressure	0KPa
Intake and exhaust nozzle outer diameter	1/4-19PT Pipe thread

Functional advantages and features

●1. Large displacement, small size.

●2. A dry vacuum pump that does not use oil in gas contact parts.

●3. Multiple debugging options can be selected based on usage.

●4. A dedicated pressurizing pump using a piston structure.

●5. Safety design with built-in overheat protector.

●6. Can operate due to atmospheric pressure.

●7. Simple structure, easy to maintain and maintain.
