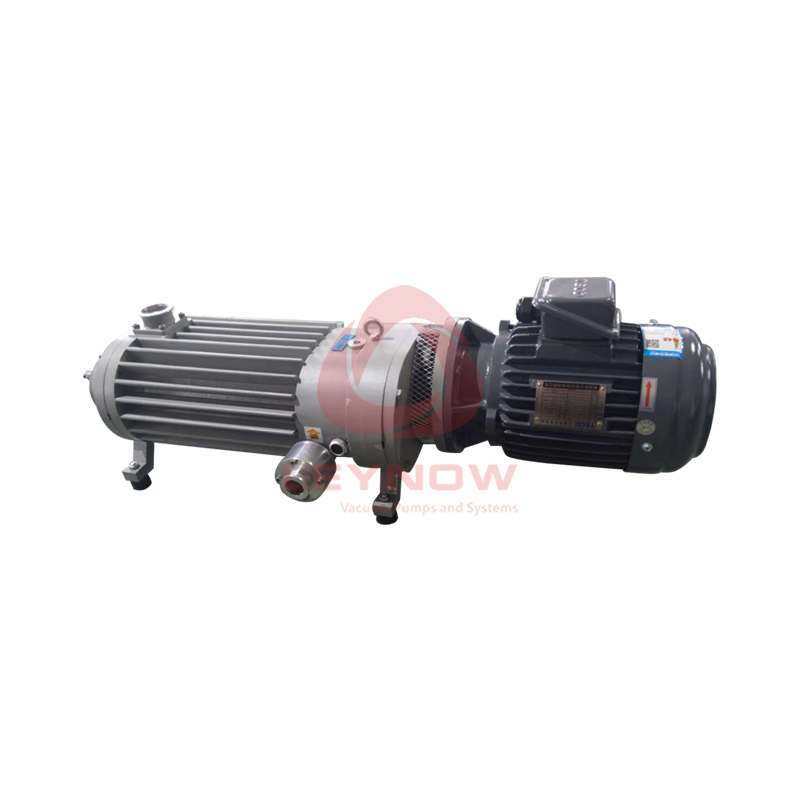

LS 0020F Dry screw vacuum pump

  • Motor power:1.1 Kw
  • Ultimate vacuum:0.5 Pa
  • Rated voltage:AC△200-240V/Y345-415V
  • Rated flow:18 m3/h
  • Rated current:3.0 A
  • Maximum blowing force:-
  • Noise level:70
  • Product weight:20
  • Industry application:
    vacuum degassing vacuum coating

Product Description:It has high reliability performance, high vacuum, fast pumping speed, clean and environmental protection

Welcome to call us for consultation:4006 112 722
ProjectParameters(50Hz)Parameters(60Hz)Remark
Motor power:1.1Kw1.5Kw
Number of motor phases:Three phases
Protection level:IP54
Insulation level:F Class
Motor revolutions:2900 r/min3500 r/min
Input voltage:AC△200-240V/Y345-415VAC△200-240V/Y345-415V
Rated current:5.0 A/3.0 A6.8 A/4.0 A
Rated flow:18 m³/h22 m³/h
Ultimate vacuum:0.5 Pa
Cooling method:Air cooling
Room temperature range:5℃~40℃
Operating humidity:90% below
Noise level:70 dB72 dB
Overall machine weight:20 Kg
Air intake diameter:40 KF
Lubricants:100#
Special customization:Customized anti-leak, anti-explosion, anti-corrosion, thermal protection
