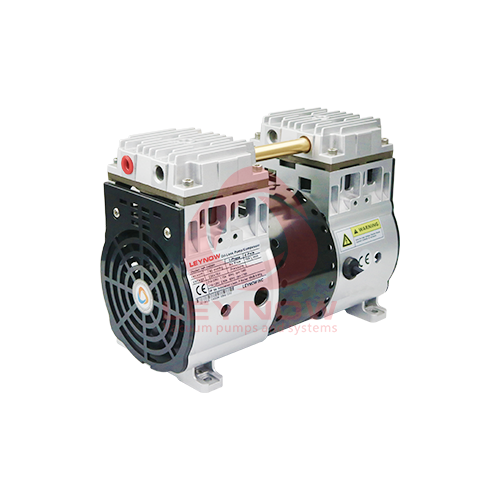

HP-1400H Oil-free silent vacuum pump

  • Motor power:0.45 Kw
  • Ultimate vacuum:-980 mBar
  • Rated voltage:110V/220-240V
  • Rated flow:7.2 m3/h
  • Rated current:2.0 A
  • Noise level:58 dB(A)
  • Product weight:8.5 Kg
  • Industry application:
    Vacuum packaging

Product Description:Ultra-low vacuum, ultra-low silent, lightweight, beautiful appearance, simple structure, easy maintenance, completely oil-free and easier to maintain.

Welcome to call us for consultation:4006 112 722
Project Standard
Rated voltage/frequency V/Hz 220V/50Hz/15uF (Can be made as required)
Input power W ≤450W 2.0A
Maximum air flow m3/h ≤7.2m³/h(120L/min)
Minimum vacuum degree (negative pressure)KPa -98KPa(-740mmHg)
Noise dB(A) ≤ 58 dB(A)
Amplitude (mm)
Use ambient temperature ℃ 5-40 ℃
Insulation level B
Cold insulation resistance (normal) MΩ ≥100MΩ
Withstand voltage strength 1500V/50Hz 1min No breakdown
Thermal protector ℃ Automatic reset 130±5℃
Weight 8.5Kg
Installation dimensions L203*W85mm(Installation foot holes ¢6mm)
Overall dimensions L245*W125*H185mm
restart pressure 0KPa
Intake and exhaust nozzle outer diameter G1/4

Leynow oil-free vacuum pump performance advantages

1. The vacuum degree is as high as -98kap, leading the industry.

2. Equipped with rubber shock-absorbing feet for smoother operation.

3. 100% oil-free and maintenance-free.

4. Silent and noise control at around 60 decibels.

5. Small size and beautiful appearance.

6. They are all equipped with overload protectors and will not burn out due to overload.

7. Free delivery of small accessories: muffler, filter, shock absorber, air pipe joint.
